  • 유니티 화면 비율 고정 처리...22
    일지 2021. 12. 9. 18:15

    기존 처리에 크기 제한 추가

    WinProc 코드에서 최대 크기, 최소 크기에 대한 제한이 상당히 괜찮아 보여서 추가하려고 한다.

    단, 가로 세로 크기를 동일하게 둘 생각인데 가로 크기 제한과 세로 크기 제한이 달라서 가로로 줄일 때와 세로로 줄일 때 사이즈가 서로 다르다는 것을 발견했기 때문이다.



    이게 굉장히 이상하게 느껴졌기에 가로, 세로의 크기 제한을 같은 값을 사용할 생각이다.



    먼저, 크기 조절을 위한 변수를 추가했다.

    	// 화면 최소 크기
    	public int MinSize { get; set; } = 512;
    	// 화면 최대 크기
    	public int MaxSize { get; set; } = 1024;



    이후 기존 크기 변경 코드를 함수로 분리한 뒤, 사이즈 조절 후에도 크기가 지정된 크기를 벗어나지 않도록 추가 함수로 크기를 조절하도록 했다.

    	/// <summary>
    	/// 주어진 크기를 지정된 비율에 맞게 수정하여 반환한다.
    	/// </summary>
    	/// <param name="width">너비</param>
    	/// <param name="height">높이</param>
    	private void GetAdjustedSize(ref int width, ref int height)
    	{
    		// 대각선으로 비율을 바꾼 경우 적절한 방향을 선택해 비율을 맞춘다.
    		if (width != m_screenSizeX && height != m_screenSizeY)
    		{
    			GetAdjustedSize(ref width, ref height, ResizeOption.Diagonal);
    		}
    		else if (width != m_screenSizeX)
    		{
    			GetAdjustedSize(ref width, ref height, ResizeOption.Vertical);
    		}
    		else
    		{
    			GetAdjustedSize(ref width, ref height, ResizeOption.Horizontal);
    		}

    		// 바꾼 값이 최소, 최대 크기를 벗어나는 경우 다시 조정한다.
    		if (width < MinSize || MaxSize < width)
    		{
    			width = width < MinSize ? MinSize : MaxSize;
    			GetAdjustedSize(ref width, ref height, ResizeOption.Vertical);
    		}
    		if (height < MinSize || MaxSize < height)
    		{
    			height = height < MinSize ? MinSize : MaxSize;
    			GetAdjustedSize(ref width, ref height, ResizeOption.Horizontal);
    		}
    	}

    	/// <summary>
    	/// 적절한 방향을 선택해 크기 조절하기 위한 함수
    	/// </summary>
    	/// <param name="width">너비</param>
    	/// <param name="height">높이</param>
    	/// <param name="resizeOption">크기 변경 옵션</param>
    	private void GetAdjustedSize(ref int width, ref int height, ResizeOption resizeOption)
    	{
    		// 대각선으로 비율을 바꾼 경우 적절한 방향을 선택해 비율을 맞춘다.
    		if (resizeOption == ResizeOption.Diagonal)
    		{
    			if (Mathf.Abs(width - m_screenSizeX) > Mathf.Abs(height - m_screenSizeY))
    			{
    				height = Mathf.FloorToInt(width / m_aspectRatio);
    			}
    			else
    			{
    				width = Mathf.FloorToInt(height * m_aspectRatio);
    			}
    		}
    		else if (resizeOption == ResizeOption.Vertical)
    		{
    			height = Mathf.FloorToInt(width / m_aspectRatio);
    		}
    		else
    		{
    			width = Mathf.FloorToInt(height * m_aspectRatio);
    		}
    	}

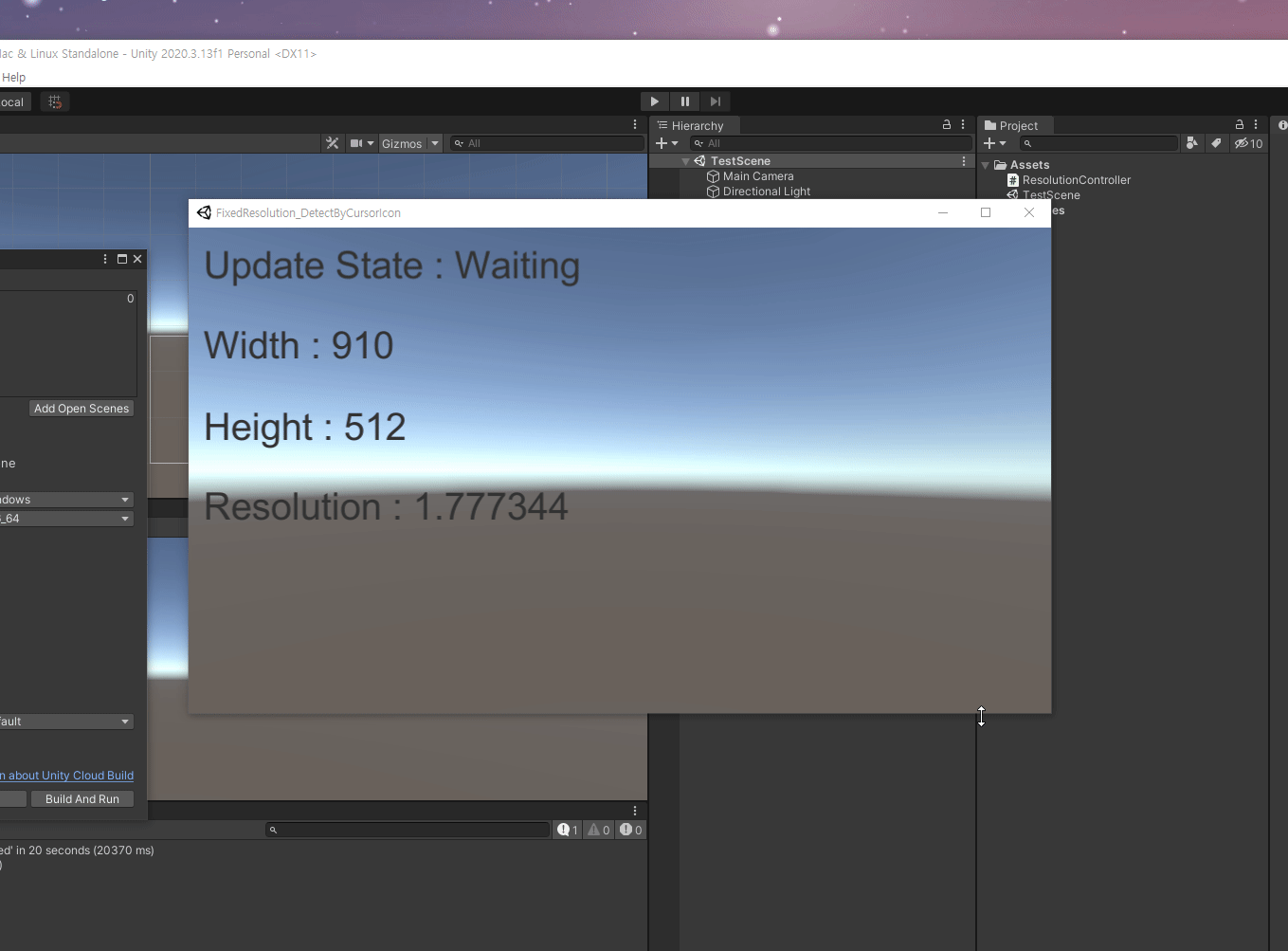

    실행 결과는 다음과 같다.

    크기 조절 시 최대, 최소 크기를 벗어나지 않는다.
